СЕРИЯ WE-PD

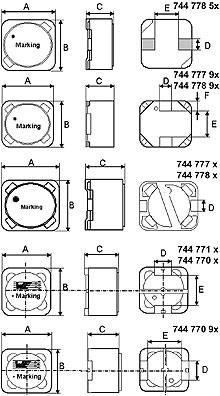

Габаритные чертежи |
Габаритные размеры, мм
|
 |
XS
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 7447785001 | 1.0 | ± 25% | 31.00 | 39.00 | 3.50 | 4.50 |
| 7447785002 | 2.2 | ± 25% | 43.00 | 54.00 | 2.90 | 3.30 |
| 7447785004 | 4.7 | ± 25% | 60.00 | 78.00 | 2.20 | 2.50 |
| 744778510 | 10.0 | ± 25% | 100.00 | 125.00 | 1.90 | 1.60 |
| 7447785122 | 22.0 | ± 25% | 210.00 | 250.00 | 1.35 | 1.10 |
| 7447785147 | 47.0 | ± 25% | 500.00 | 600.00 | 0.85 | 0.74 |
| 744778520 | 100.0 | ± 25% | 950.00 | 1060.00 | 0.65 | 0.50 |
S (new)
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 7447789001 | 1.0 | ± 20% | 10.00 | 12.00 | 5.37 | 6.40 |
| 7447789002 | 2.2 | ± 20% | 19.00 | 20.00 | 4.02 | 4.80 |
| 7447789003 | 3.3 | ± 20% | 24.00 | 30.00 | 3.42 | 4.20 |
| 7447789004 | 4.7 | ± 20% | 33.00 | 35.00 | 2.90 | 3.90 |
| 7447789006 | 6.8 | ± 20% | 44.00 | 44.00 | 2.50 | 2.75 |
| 744778910 | 10.0 | ± 20% | 64.00 | 72.00 | 1.83 | 2.20 |
| 7447789112 | 12.0 | ± 20% | 76.00 | 98.00 | 1.73 | 1.90 |
| 7447789115 | 15.0 | ± 20% | 100.00 | 130.00 | 1.51 | 1.75 |
| 7447789118 | 18.0 | ± 20% | 114.00 | 140.00 | 1.41 | 1.70 |
| 7447789122 | 22.0 | ± 20% | 119.00 | 190.00 | 1.38 | 1.40 |
| 7447789127 | 27.0 | ± 20% | 130.00 | 210.00 | 1.27 | 1.35 |
| 7447789133 | 33.0 | ± 20% | 153.00 | 240.00 | 1.22 | 1.15 |
| 7447789139 | 39.0 | ± 20% | 209.00 | 320.00 | 1.03 | 1.10 |
| 7447789147 | 47.0 | ± 20% | 315.00 | 360.00 | 0.85 | 1.00 |
| 7447789156 | 56.0 | ± 20% | 335.00 | 470.00 | 0.84 | 0.90 |
| 7447789168 | 68.0 | ± 20% | 427.00 | 520.00 | 0.74 | 0.84 |
| 7447789182 | 82.0 | ± 20% | 470.00 | 690.00 | 0.69 | 0.78 |
| 744778920 | 100.0 | ± 20% | 585.00 | 790.00 | 0.62 | 0.76 |
| 7447789212 | 120.0 | ± 20% | 563.00 | 890.00 | 0.60 | 0.68 |
| 7447789215 | 150.0 | ± 20% | 720.00 | 1270.00 | 0.56 | 0.53 |
| 7447789218 | 180.0 | ± 20% | 960.00 | 1450.00 | 0.49 | 0.50 |
| 7447789222 | 220.0 | ± 20% | 1350.00 | 1650.00 | 0.43 | 0.42 |
| 7447789270 | 270.0 | ± 20% | 1470.00 | 2310.00 | 0.40 | 0.39 |
| 7447789233 | 330.0 | ± 20% | 2280.00 | 2620.00 | 0.32 | 0.35 |
| 7447789239 | 390.0 | ± 20% | 2490.00 | 2940.00 | 0.30 | 0.34 |
| 744778924 | 470.0 | ± 20% | 2600.00 | 4180.00 | 0.30 | 0.31 |
| 744778925 | 560.0 | ± 20% | 3000.00 | 4670.00 | 0.27 | 0.30 |
| 744778926 | 680.0 | ± 20% | 4500.00 | 5730.00 | 0.22 | 0.22 |
| 744778928 | 820.0 | ± 20% | 4990.00 | 6540.00 | 0.21 | 0.20 |
| 744778930 | 1000.0 | ± 20% | 5570.00 | 9440.00 | 0.20 | 0.18 |
M (new)
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 7447779001 | 1.0 | ± 20% | 10.00 | 11.00 | 5.30 | 9.50 |
| 74477790015 | 1.5 | ± 20% | 15.00 | 18.00 | 4.30 | 7.30 |
| 7447779002 | 2.2 | ± 20% | 16.00 | 20.00 | 4.20 | 6.00 |
| 7447779003 | 3.3 | ± 20% | 26.00 | 30.00 | 3.30 | 4.50 |
| 7447779004 | 4.7 | ± 20% | 28.00 | 32.00 | 3.16 | 4.40 |
| 7447779006 | 6.8 | ± 20% | 33.00 | 35.00 | 2.91 | 3.30 |
| 744777910 | 10.0 | ± 20% | 45.00 | 49.00 | 2.00 | 2.60 |
| 7447779112 | 12.0 | ± 20% | 50.00 | 58.00 | 1.82 | 2.40 |
| 7447779115 | 15.0 | ± 20% | 70.00 | 81.00 | 1.60 | 2.20 |
| 7447779118 | 18.0 | ± 20% | 80.00 | 91.00 | 1.50 | 2.05 |
| 7447779122 | 22.0 | ± 20% | 90.00 | 110.00 | 1.41 | 1.70 |
| 7447779127 | 27.0 | ± 20% | 120.00 | 150.00 | 1.24 | 1.55 |
| 7447779133 | 33.0 | ± 20% | 140.00 | 170.00 | 1.13 | 1.40 |
| 7447779139 | 39.0 | ± 20% | 145.00 | 230.00 | 1.11 | 1.23 |
| 7447779147 | 47.0 | ± 20% | 190.00 | 260.00 | 1.03 | 1.10 |
| 7447779156 | 56.0 | ± 20% | 228.00 | 350.00 | 0.93 | 1.05 |
| 7447779168 | 68.0 | ± 20% | 239.00 | 380.00 | 0.87 | 0.95 |
| 7447779182 | 82.0 | ± 20% | 250.00 | 430.00 | 0.84 | 0.90 |
| 744777920 | 100.0 | ± 20% | 290.00 | 610.00 | 0.79 | 0.75 |
| 7447779212 | 120.0 | ± 20% | 396.00 | 660.00 | 0.67 | 0.70 |
| 7447779215 | 150.0 | ± 20% | 529.00 | 880.00 | 0.52 | 0.63 |
| 7447779218 | 180.0 | ± 20% | 603.00 | 980.00 | 0.51 | 0.56 |
| 7447779222 | 220.0 | ± 20% | 920.00 | 1170.00 | 0.44 | 0.54 |
| 7447779270 | 270.0 | ± 20% | 1090.00 | 1640.00 | 0.43 | 0.48 |
| 7447779233 | 330.0 | ± 20% | 1150.00 | 1860.00 | 0.39 | 0.45 |
| 7447779239 | 390.0 | ± 20% | 1400.00 | 2850.00 | 0.38 | 0.42 |
| 744777924 | 470.0 | ± 20% | 1600.00 | 3010.00 | 0.29 | 0.34 |
| 744777925 | 560.0 | ± 20% | 1720.00 | 3620.00 | 0.28 | 0.31 |
| 744777926 | 680.0 | ± 20% | 2600.00 | 4630.00 | 0.23 | 0.28 |
| 744777928 | 820.0 | ± 20% | 2960.00 | 5200.00 | 0.21 | 0.26 |
| 744777930 | 1000.0 | ± 20% | 3270.00 | 6000.00 | 0.20 | 0.25 |
S
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 744778001 | 1.0 | ± 20% | 9.00 | 12.00 | 5.37 | 6.40 |
| 744778002 | 2.2 | ± 20% | 14.00 | 20.00 | 4.02 | 4.80 |
| 744778004 | 4.7 | ± 20% | 42.00 | 60.00 | 2.32 | 4.20 |
| 74477810 | 10.0 | ± 20% | 68.00 | 72.00 | 1.83 | 2.20 |
| 744778112 | 12.0 | ± 20% | 76.00 | 98.00 | 1.73 | 2.15 |
| 744778115 | 15.0 | ± 20% | 100.00 | 130.00 | 1.51 | 1.75 |
| 744778118 | 18.0 | ± 20% | 114.00 | 140.00 | 1.41 | 1.70 |
| 744778122 | 22.0 | ± 20% | 119.00 | 190.00 | 1.38 | 1.40 |
| 744778127 | 27.0 | ± 20% | 140.00 | 210.00 | 1.27 | 1.30 |
| 744778133 | 33.0 | ± 20% | 153.00 | 240.00 | 1.22 | 1.15 |
| 744778139 | 39.0 | ± 20% | 214.00 | 320.00 | 1.03 | 1.10 |
| 744778147 | 47.0 | ± 20% | 315.00 | 360.00 | 0.85 | 1.00 |
| 744778156 | 56.0 | ± 20% | 322.00 | 470.00 | 0.84 | 0.88 |
| 744778168 | 68.0 | ± 20% | 417.00 | 520.00 | 0.74 | 0.84 |
| 744778182 | 82.0 | ± 20% | 479.00 | 690.00 | 0.69 | 0.78 |
| 74477820 | 100.0 | ± 20% | 585.00 | 790.00 | 0.62 | 0.76 |
| 744778212 | 120.0 | ± 20% | 634.00 | 890.00 | 0.60 | 0.68 |
| 744778215 | 150.0 | ± 20% | 720.00 | 1270.00 | 0.56 | 0.53 |
| 744778218 | 180.0 | ± 20% | 960.00 | 1450.00 | 0.49 | 0.50 |
| 744778222 | 220.0 | ± 20% | 1220.00 | 1650.00 | 0.43 | 0.42 |
| 744778270 | 270.0 | ± 20% | 1440.00 | 2310.00 | 0.40 | 0.39 |
| 744778233 | 330.0 | ± 20% | 2280.00 | 2620.00 | 0.32 | 0.35 |
| 744778239 | 390.0 | ± 20% | 2490.00 | 2940.00 | 0.30 | 0.34 |
| 74477824 | 470.0 | ± 20% | 2600.00 | 4180.00 | 0.30 | 0.31 |
| 74477825 | 560.0 | ± 20% | 3000.00 | 4670.00 | 0.27 | 0.30 |
| 74477826 | 680.0 | ± 20% | 4500.00 | 5730.00 | 0.22 | 0.22 |
| 74477828 | 820.0 | ± 20% | 5070.00 | 6500.00 | 0.21 | 0.20 |
| 74477830 | 1000.0 | ± 20% | 5570.00 | 9440.00 | 0.20 | 0.18 |
M
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 744777001 | 1.00 | +40% / -20% | 8.40 | 10.00 | 8.00 | 9.00 |
| 744777002 | 2.20 | ± 20% | 13.00 | 20.00 | 6.00 | 6.50 |
| 744777003 | 3.30 | ± 20% | 25.00 | 30.00 | 5.00 | 4.60 |
| 744777004 | 4.70 | ± 20% | 40.00 | 25.00 | 4.00 | 4.00 |
| 74477710 | 10.0 | ± 20% | 45.00 | 49.00 | 2.00 | 2.60 |
| 744777112 | 12.0 | ± 20% | 54.00 | 58.00 | 1.82 | 2.40 |
| 744777115 | 15.0 | ± 20% | 70.00 | 81.00 | 1.60 | 2.20 |
| 744777118 | 18.0 | ± 20% | 80.00 | 91.00 | 1.50 | 2.05 |
| 744777122 | 22.0 | ± 20% | 90.00 | 110.00 | 1.41 | 1.70 |
| 744777127 | 27.0 | ± 20% | 117.20 | 150.00 | 1.24 | 1.55 |
| 744777133 | 33.0 | ± 20% | 140.00 | 170.00 | 1.13 | 1.40 |
| 744777139 | 39.0 | ± 20% | 145.00 | 230.00 | 1.11 | 1.23 |
| 744777147 | 47.0 | ± 20% | 170.00 | 260.00 | 1.03 | 1.10 |
| 744777156 | 56.0 | ± 20% | 207.00 | 350.00 | 0.93 | 1.05 |
| 744777168 | 68.0 | ± 20% | 239.00 | 380.00 | 0.87 | 0.95 |
| 744777182 | 82.0 | ± 20% | 257.00 | 430.00 | 0.84 | 0.90 |
| 74477720 | 100.0 | ± 20% | 290.00 | 610.00 | 0.79 | 0.75 |
| 744777212 | 120.0 | ± 20% | 400.00 | 660.00 | 0.67 | 0.70 |
| 744777215 | 150.0 | ± 20% | 660.00 | 880.00 | 0.52 | 0.63 |
| 744777218 | 180.0 | ± 20% | 680.00 | 980.00 | 0.51 | 0.56 |
| 744777222 | 220.0 | ± 20% | 920.00 | 1170.00 | 0.44 | 0.54 |
| 744777270 | 270.0 | ± 20% | 970.00 | 1640.00 | 0.43 | 0.48 |
| 744777233 | 330.0 | ± 20% | 1150.00 | 1860.00 | 0.39 | 0.45 |
| 744777239 | 390.0 | ± 20% | 1250.00 | 2850.00 | 0.38 | 0.42 |
| 74477724 | 470.0 | ± 20% | 1600.00 | 3010.00 | 0.29 | 0.34 |
| 74477725 | 560.0 | ± 20% | 1720.00 | 3620.00 | 0.28 | 0.31 |
| 74477726 | 680.0 | ± 20% | 2600.00 | 4630.00 | 0.23 | 0.28 |
| 74477728 | 820.0 | ± 20% | 3000.00 | 5200.00 | 0.21 | 0.26 |
| 74477730 | 1000.0 | ± 20% | 3270.00 | 6000.00 | 0.20 | 0.25 |
L
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 744771001 | 1.50 | ± 20% | 4.00 | 6.00 | 10.50 | 11.50 |
| 744771002 | 2.20 | ± 20% | 5.00 | 8.00 | 10.00 | 11.00 |
| 744771003 | 3.50 | ± 20% | 5.00 | 8.00 | 9.25 | 9.00 |
| 744771004 | 4.70 | ± 20% | 8.00 | 11.00 | 8.25 | 8.00 |
| 744771008 | 8.20 | ± 20% | 14.00 | 20.00 | 6.25 | 6.25 |
| 74477110 | 10.0 | ± 20% | 21.00 | 25.00 | 4.09 | 5.60 |
| 744771112 | 12.0 | ± 20% | 23.00 | 27.00 | 3.91 | 4.85 |
| 744771115 | 15.0 | ± 20% | 25.00 | 30.00 | 3.75 | 4.55 |
| 744771118 | 18.0 | ± 20% | 29.00 | 34.00 | 3.48 | 4.30 |
| 744771122 | 22.0 | ± 20% | 31.00 | 36.00 | 3.37 | 3.77 |
| 744771127 | 27.0 | ± 20% | 40.00 | 51.00 | 2.97 | 3.55 |
| 744771133 | 33.0 | ± 20% | 49.00 | 57.00 | 2.68 | 3.00 |
| 744771139 | 39.0 | ± 20% | 57.00 | 68.00 | 2.49 | 2.74 |
| 744771147 | 47.0 | ± 20% | 72.00 | 75.00 | 2.21 | 2.60 |
| 744771156 | 56.0 | ± 20% | 87.00 | 110.00 | 2.01 | 2.35 |
| 744771168 | 68.0 | ± 20% | 96.00 | 120.00 | 1.91 | 2.19 |
| 744771182 | 82.0 | ± 20% | 129.00 | 140.00 | 1.65 | 1.88 |
| 74477120 | 100.0 | ± 20% | 150.00 | 160.00 | 1.53 | 1.70 |
| 744771212 | 120.0 | ± 20% | 159.00 | 170.00 | 1.30 | 1.56 |
| 744771215 | 150.0 | ± 20% | 185.00 | 230.00 | 1.21 | 1.43 |
| 744771218 | 180.0 | ± 20% | 242.00 | 290.00 | 1.06 | 1.24 |
| 744771220 | 220.0 | ± 20% | 290.00 | 400.00 | 0.96 | 1.20 |
| 744771270 | 270.0 | ± 20% | 338.00 | 460.00 | 0.89 | 1.00 |
| 744771233 | 330.0 | ± 20% | 442.00 | 510.00 | 0.78 | 0.97 |
| 744771239 | 390.0 | ± 20% | 590.00 | 690.00 | 0.68 | 0.85 |
| 74477124 | 470.0 | ± 20% | 660.00 | 770.00 | 0.64 | 0.80 |
| 74477125 | 560.0 | ± 20% | 690.00 | 860.00 | 0.62 | 0.70 |
| 74477126 | 680.0 | ± 20% | 880.00 | 1200.00 | 0.55 | 0.68 |
| 74477128 | 820.0 | ± 20% | 1025.00 | 1340.00 | 0.51 | 0.60 |
| 74477130 | 1000.0 | ± 20% | 1430.00 | 1530.00 | 0.43 | 0.50 |
XL
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 74477009 | 0.47 | +20%/-25% | 2.90 | 3.00 | 23.50 | 26.40 |
| 74477001 | 1.2 | +40%/-20% | 5.00 | 7.00 | 12.00 | 16.60 |
| 74477002 | 2.4 | +40%/-20% | 9.00 | 12.00 | 10.10 | 14.30 |
| 74477003 | 3.5 | +40%/-20% | 11.00 | 14.00 | 8.90 | 9.60 |
| 74477004 | 4.7 | +40%/-20% | 12.00 | 16.00 | 8.50 | 9.30 |
| 74477006 | 6.1 | +40%/-20% | 15.00 | 18.00 | 7.60 | 8.60 |
| 74477007 | 7.6 | +40%/-20% | 16.00 | 20.00 | 7.40 | 8.00 |
| 74477010 | 10.0 | ± 20% | 19.00 | 22.00 | 6.20 | 6.60 |
| 744770112 | 12.0 | ± 20% | 21.00 | 24.00 | 5.90 | 6.30 |
| 744770115 | 15.0 | ± 20% | 24.00 | 27.00 | 5.00 | 6.00 |
| 744770118 | 18.0 | ± 20% | 32.00 | 39.00 | 4.20 | 5.40 |
| 744770122 | 22.0 | ± 20% | 33.00 | 43.00 | 4.10 | 5.00 |
| 744770127 | 27.0 | ± 20% | 35.00 | 46.00 | 3.70 | 3.80 |
| 744770133 | 33.0 | ± 20% | 47.00 | 64.00 | 3.20 | 3.60 |
| 744770139 | 39.0 | ± 20% | 53.00 | 72.90 | 3.00 | 3.50 |
| 744770147 | 47.0 | ± 20% | 76.00 | 100.00 | 2.70 | 3.00 |
| 744770156 | 56.0 | ± 20% | 85.00 | 110.00 | 2.40 | 2.90 |
| 744770168 | 68.0 | ± 20% | 90.00 | 140.00 | 2.30 | 2.50 |
| 74477020 | 100.0 | ± 20% | 102.00 | 220.00 | 2.20 | 2.40 |
| 744770222 | 220.0 | ± 20% | 247.00 | 390.00 | 1.30 | 1.49 |
| 744770233 | 330.0 | ± 20% | 349.00 | 640.00 | 1.10 | 1.10 |
| 744770247 | 470.0 | ± 20% | 496.00 | 980.00 | 0.90 | 0.90 |
| 744770256 | 560.0 | ± 20% | 593.00 | 1070.00 | 0.80 | 0.90 |
| 744770268 | 680.0 | ± 20% | 840.00 | 1460.00 | 0.70 | 0.80 |
| 744770282 | 820.0 | ± 20% | 936.00 | 1640.00 | 0.60 | 0.80 |
| 74477030 | 1000.0 | ± 20% | 1040.00 | 1820.00 | 0.60 | 0.70 |
XXL
| Номер для заказа | Индуктивность, мкГн | Допуск, % | Сопротивление пост. току тип., мОм | Сопротивление пост. току макс., мОм | Номинальный ток, А | Ток насыщения, А |
| 7447709001 | 1.0 | ± 20% | 3.86 | 5.60 | 13.00 | 25.00 |
| 7447709002 | 2.2 | ± 20% | 4.94 | 6.00 | 11.50 | 20.00 |
| 7447709003 | 3.5 | ± 20% | 5.90 | 8.50 | 11.00 | 16.50 |
| 7447709004 | 4.7 | ± 20% | 7.42 | 11.00 | 9.30 | 13.00 |
| 7447709006 | 6.8 | ± 20% | 9.10 | 14.00 | 8.40 | 12.80 |
| 7447709100 | 10.0 | ± 20% | 12.94 | 21.00 | 7.10 | 10.50 |
| 7447709150 | 15.0 | ± 20% | 20.75 | 26.00 | 6.50 | 8.00 |
| 7447709220 | 22.0 | ± 20% | 23.30 | 28.00 | 5.30 | 6.50 |
| 7447709330 | 33.0 | ± 20% | 36.80 | 45.00 | 4.20 | 5.50 |
| 7447709470 | 47.0 | ± 20% | 45.93 | 60.00 | 3.80 | 4.50 |
| 7447709680 | 68.0 | ± 20% | 68.64 | 88.50 | 3.20 | 3.60 |
| 7447709101 | 100.0 | ± 20% | 100.00 | 110.00 | 2.50 | 3.10 |
| 7447709151 | 150.0 | ± 20% | 151.00 | 200.00 | 2.10 | 2.70 |
| 7447709221 | 220.0 | ± 20% | 193.00 | 300.00 | 1.80 | 2.20 |
| 7447709271 | 270.0 | ± 20% | 248.00 | 330.00 | 1.60 | 2.10 |
| 7447709331 | 330.0 | ± 20% | 363.00 | 430.00 | 1.50 | 1.70 |
| 7447709471 | 470.0 | ± 20% | 437.00 | 560.00 | 1.40 | 1.50 |
